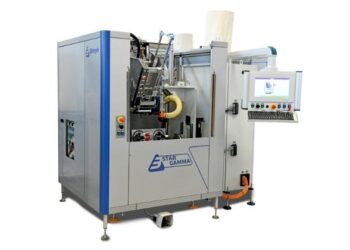

Star Gamma
VERTICAL TUFTING MACHINE WITH 1 FILLING TOOL AND 1 DRILL FOR THE PRODUCTION OF BROOMS AND BRUSHES.

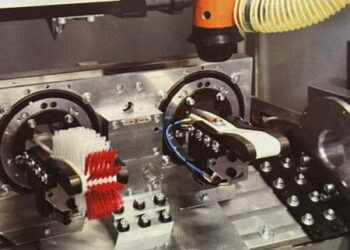

STAR GAMMA is a simple machine, quick to set up and easy to operate. Thanks to its fast change-over speed, STAR GAMMA is ideal for small productions and frequent model changes. The operator manually loads the virgin blocks onto the machine and enables the working cycle. When the cycle is over, the operator removes the filled block and then moves the drilled block from the drilling station to the filling station, and places a virgin block into the drilling station and starts the machine cycle again. STAR GAMMA can be equipped with double clamping system.
Features
1 drill, 1 filling tool, vertical
Brush Models
radial filling
upright filling
cylinder brushes
radial & upright filling
toilet brushes
dish brushes
special brushes
disc brushes
Highlights
EASY SET UP
Easy setup of new models
FLAT BRUSHES
Ability to produce flat brushes with radial or upright filling
CYLINDER BRUSHES
Cylinder brush carriage available
5 AXES
of movement
TOILET BRUSHES
Toilet brush carriage available for the 4 axes version of the machine
Technical data
| Axes | 5 |
| Filling tools | 1 |
| Drills | 1 |
| Stroke (mm) | 85 |
| Speed (tufts/min) | 450 |
| Maximum fiber length (mm) | 300 |
| Minimum fiber length (mm) | 40 |
| Max filling tool (mm) | 7.5 |
| Min filling tool (mm) | 2.2 |
| Power consumption (kW) | 2.6 |
| Air Consumption (nl/min) | 300 |
| Weight (kg) | 1300 |
| Dimensions (mm) | L-1900 W-1900 H-2200 |
