Star Delta
VERTICAL TUFTING MACHINE WITH 2 FILLING TOOLS AND 3 DRILLS FOR THE PRODUCTION OF ALL KINDS OF BROOMS AND BRUSHES.

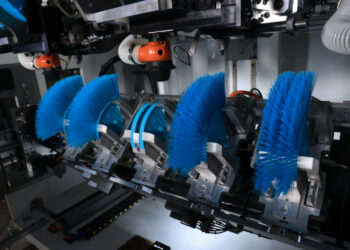

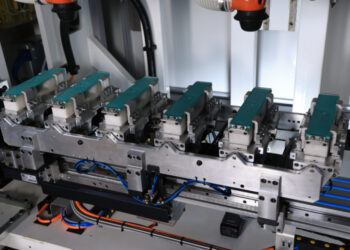

STAR DELTA is the flagship of the vertical tufting technology, both in terms of performance and versatility. The output of brushes is extremely high, thanks to the 6 clamping stations and the continuous operation of the machine. The variety of brushes that the machine can produce is wide and diversified, thanks to the 5 axes of movement run by brushless servomotors and the available range of specific tooling and accessories.
Features
3 drills, 2 filling tools, vertical

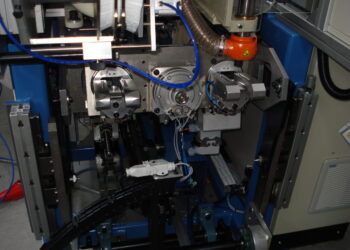

Bridge Option

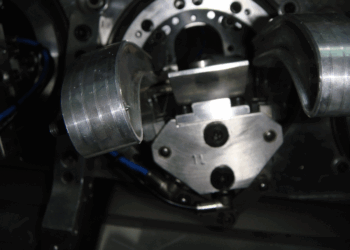

The variety of available bridges allows for manufacturing all different types of brooms and brushes for the household industry, including toilet brushes, Swedish type dish brushes and Indian double hockey brushes. It is also possible to produce special items such as cylinder brushes, cylindrical hairbrushes, tank brushes, discs and other technical brushes. The change over from one setup to another is extremely fast.
Brush Models

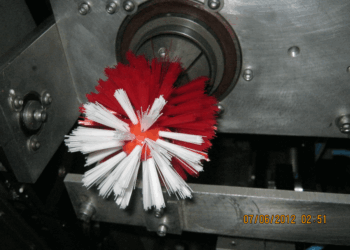

cylinder brushes
disc brushes
dish brushes

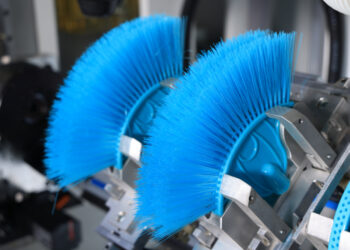

radial filling
radial & upright filling
lag/table brushes
special brushes
toilet brushes
upright filling
Highlights
The Borghi India STAR-DELTA machine boasts exceptional versatility and high efficiency for brush production. It is capable of producing flat brushes with both radial and upright filing, as well as round head toilet brushes and double hockey toilet brushes, meeting diverse product requirements with precision. The machine features easy setup for new models, significantly reducing changeover time and enhancing operational flexibility. Designed for high productivity, it operates at speeds up to 450 rpm, ensuring fast and reliable output while maintaining consistent quality — making it an ideal choice for manufacturers focused on performance and flexibility.
HIGH OUTPUT
High speed and low down-time of the machine
QUICK CHANGE-OVER TIME
Many different setups and short time to go from one to another
STAPLE-SET AND ANCHOR-SET
Staple-set and anchor-set tufting available, also with mobile jaws for a greater flare angle
EASY MAINTENANCE
Electro-spindles, a/c for the electrical cabinet and router for the remote assistance
Technical data
| Axes | 5 |
| Filling tools | 2 |
| Drills | 3 |
| Stroke (mm) | 85 |
| Speed (tufts/min) | 1000 |
| Maximum fiber length (mm) | 300 |
| Minimum fiber length (mm) | 40 |
| Max brush width (mm) | 100 |
| Max filling tool (mm) | 7.5 |
| Min filling tool (mm) | 2.2 |
| Power consumption (kW) | 5 |
| Air Consumption (nl/min) | 170 |
| Weight (kg) | 3200 |
| Dimensions (mm) | L-3200 W-2700 H-2600 |
