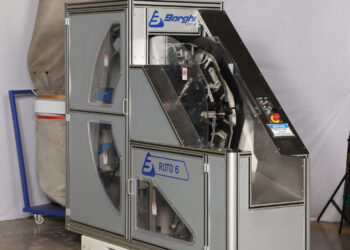

Roto 6
CARROUSEL TRIMMING MACHINES FOR BROOMS AND BRUSHES WITH FLAT OR CURVED PROFILES.
ROTO 6 series is a family of trimming and flagging machines, ideal for finishing high volumes of brooms and brushes, in particular items with curved profiles. ROTO 6 BASIC and ROTO 6 PLUS are based on a cam system, allowing different trimming profiles for different shapes of the brooms and brushes. ROTO 6 e-PLUS adds higher trimming versatility thanks to electronically controlled tools. All the tools of the ROTO 6 e-PLUS are moved by stepper motors and can be quickly configured to achieve different trimming profiles.
Brush Models
flat finishing
curved finishing
Highlights
6 CLAMPS
Carry 6 brushes, working in continuous cycle and giving an extraordinary high output of finished products
FOR A PERFECT FINISH

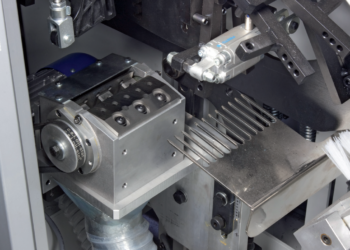

Each brush passes through various workstations, equipped with different tools

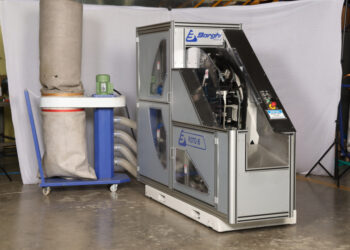

DUST SUCTION UNIT INCLUDED
To remove dust and waste material and keep the machine clean
Technical data
| Clamps | 6 |
| Workstations | 4 |
| Production (brushes/hour) | 1200 |
| Maximum brush length (mm) | 400 |
| Tools | |
| Clipper Unit | no |
| Flagging head #1 | yes |
| Flagging head #2 | yes |
| Rotary-blades unit | yes |
| Fiber cleaner | no |
| Beating station | yes |
| Trimming profile | Cam Based |
| Power consumption (kW) | 4 |
| Air consumption (n L/min) | 80 |
| Weight (kg) | 700 |
| Dimensions (mm) | L-2100
W-950
H-1800 |
